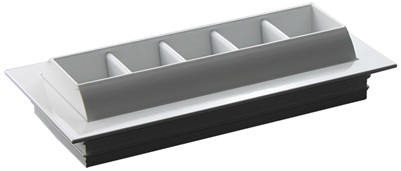

Drum Jet Diffuser

Escoflow offers a complete line of Drum Jet diffuser is a high capacity unit specifically designed for  warehouses, sports halls or factory units etc where a long throw is required. The Drum Jet diffuser is fully adjustable to provide a full jet spread and directional control.
The unit is constructed from aluminium extrusions and comes complete with brush strips to provide a low friction, airtight seal. Standard installation is screw fixing through the face flange.
FEATURE
      Material: Aluminium.
      Rectangle construction , drum shell which install in a frame , can be adjusted max ±30° up and down.
      Under linkage situation, the air-guiding blades can be adjusted ±45° horizontally to make hot/cold airflow distributed in all directions.
      High quality polyester powder coating >40 micron (white color).
      Optional: Opposed volume damper (OBVD).
